Advan Wheels

ADVAN RSD

ADVAN Racing RS-D is based on the ADVAN Racing RS but with a “D” for “Deep Dish”.Depending on the size, “Extra Deep” versions can be up to 77mm deep.

This wheel has a certain street appeal with a race focus. The ADVAN RS-D focuses on larger sizes ranging from 18 inch to 20 inch.

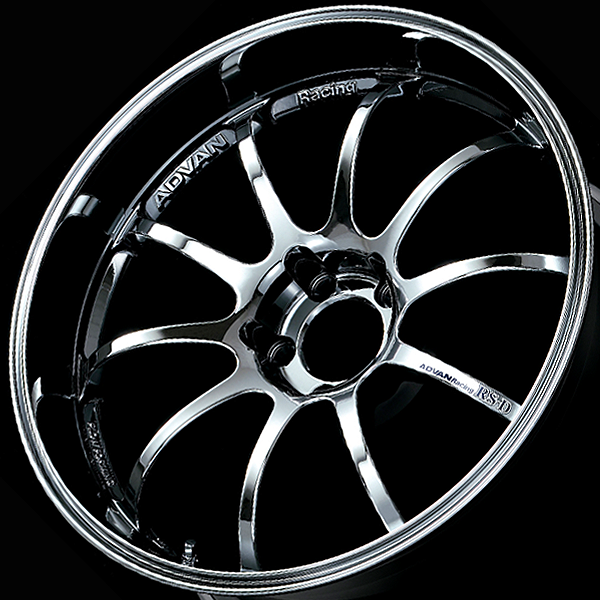

Available in 3 colours; Machining Silver, Machining Black and Bright Chrome. All colours come with a diamond polished rim with a flawless mirror finish.

Common offsets and stud patterns are available to suit most Japanese, European and Domestic built cars. The one-piece construction is flow formed with a long 10 spoke design. The spokes curve back sharply to achieve brake calliper clearance as well as the deep dish look.

Each rim features the ADVAN Racing logo raised 1mm in height between the spokes on the rim area. The logo is carved in superb detail which is a secondary process after painting; except for the Bright Chrome finish.

Additional ADVAN RS-D stickers can be printed on the spoke to customise the appearance. Machine Silver and Bright Chrome is now discontinued and only available while stock lasts

Enquire now
Wheel Image
Wheel Image
Wheel Image
Wheel Image

Fitments Enquire now

RIM SIZE PCD HOLE OFFSET COLOUR RRP
17x7J 100 4 47 MB $648
17x7J 100 4 47 BB $608
17x7J 100 4 42 MB $648
17x7J 100 4 42 BB $608
17x7.5J 100 5 50 MB $654
17x7.5J 100 5 50 BB $615
17x7.5J 114.3 5 48 MB $654
17x7.5J 114.3 5 48 BB $615
17x8J 100 5 47 MB $660
17x8J 100 5 47 BB $621
17x8J 112 5 50 MB $660
17x8J 112 5 50 BB $621
17x8J 114.3 5 45 MB $660
17x8J 114.3 5 45 BB $621
17x8J 114.3 5 38 MB $660
17x8J 114.3 5 38 BB $621
17x8.5J 114.3 5 51 MB $668
17x8.5J 114.3 5 51 BB $628
17x8.5J 114.3 5 35 MB $668
17x8.5J 114.3 5 35 BB $628
17x8.5J 120 5 35 MB $668
17x8.5J 120 5 35 BB $628
17x9J 114.3 5 45 MB $674
17x9J 114.3 5 45 BB $635
17x9J 114.3 5 35 MB $674
17x9J 114.3 5 35 BB $635
18x7.5J 100 4 42 MB $758
18x7.5J 100 4 42 BB $719
18x7.5J 100 5 50 MB $758
18x7.5J 100 5 50 BB $719
18x7.5J 114.3 5 48 MB $758
18x7.5J 114.3 5 48 BB $719
18x8J 100 5 47 MB $765
18x8J 100 5 47 BB $726
18x8J 112 5 48 MB $765
18x8J 112 5 48 BB $726
18x8J 114.3 5 45 MB $765
18x8J 114.3 5 45 BB $726
18x8J 114.3 5 37 MB $765
18x8J 114.3 5 37 BB $726
18x8.5J 112 5 45 MB $771
18x8.5J 114.3 5 51 MB $771
18x8.5J 114.3 5 51 BB $733
18x8.5J 114.3 5 31 MB $771
18x8.5J 114.3 5 31 BB $733
18x8.5J 120 5 35 MB $771
18x8.5J 120 5 35 BB $733
18x9J 114.3 5 45 MB $778
18x9J 114.3 5 45 BB $739
18x9J 114.3 5 35 MB $778
18x9J 114.3 5 35 BB $739
18x9J 114.3 5 25 MB $778
18x9J 114.3 5 25 BB $739
18x9.5J 120 5 35 MB $785
18x9.5J 120 5 35 BB $746
18x9.5J 120 5 25 MB $785
18x10J 114.3 5 35 MB $791
18x10J 114.3 5 35 BB $753
18x10J 114.3 5 25 MB $791
18x10J 114.3 5 25 BB $753
19x7.5J 100 4 44 MB $856
19x7.5J 100 4 44 BB $818
19x7.5J 100 5 50 MB $856
19x7.5J 100 5 50 BB $818
19x8J 100 5 47 MB $869
19x8J 100 5 47 BB $830
19x8J 110 5 35 MB $869
19x8J 110 5 35 BB $830
19x8.5J 114.3 5 45 MB $883
19x8.5J 114.3 5 45 BB $844
19x8.5J 114.3 5 38 MB $883
19x8.5J 114.3 5 38 BB $844
19x8.5J 120 5 35 MB $883
19x8.5J 120 5 35 BB $844
19x9J 112 5 48 MB $895
19x9J 112 5 48 BB $856
19x9J 114.3 5 35 MB $895
19x9J 114.3 5 35 BB $856
19x9J 114.3 5 25 MB $895
19x9J 114.3 5 25 BB $856
19x9J 120 5 22 MB $895
19x9J 120 5 22 BB $856
19x9.5J 112 5 29 MB $909
19x9.5J 114.3 5 45 MB $909
19x9.5J 114.3 5 45 BB $870
19x9.5J 120 5 35 MB $909
19x9.5J 120 5 35 BB $870
19x9.5J 120 5 25 MB $909
19x9.5J 120 5 25 BB $870
19x10J 114.3 5 35 MB $923
19x10J 114.3 5 35 BB $883
19x10J 114.3 5 25 MB $923
19x10J 114.3 5 25 BB $883
19x10J 114.3 5 15 MB $923
19x10J 114.3 5 15 BB $883
19x10J 120 5 20 MB $923
19x10J 120 5 20 BB $883
20x8.5J 114.3 5 38 MB $986
20x8.5J 114.3 5 38 BB $948
20x9J 114.3 5 25 MB $1000
20x9J 114.3 5 25 BB $961
20x9J 120 5 17 MB $1000
20x9J 120 5 17 BB $961
20x9.5J 114.3 5 40 MB $1014
20x9.5J 114.3 5 40 BB $974
20x10J 114.3 5 35 MB $1026
20x10J 114.3 5 35 BB $988
20x10J 114.3 5 25 MB $1026
20x10J 114.3 5 25 BB $988
20x10.5J 114.3 5 20 MB $1040
20x10.5J 114.3 5 20 BB $1001
20x10.5J 120 5 25 MB $1040
20x10.5J 120 5 25 BB $1001

Available Colours

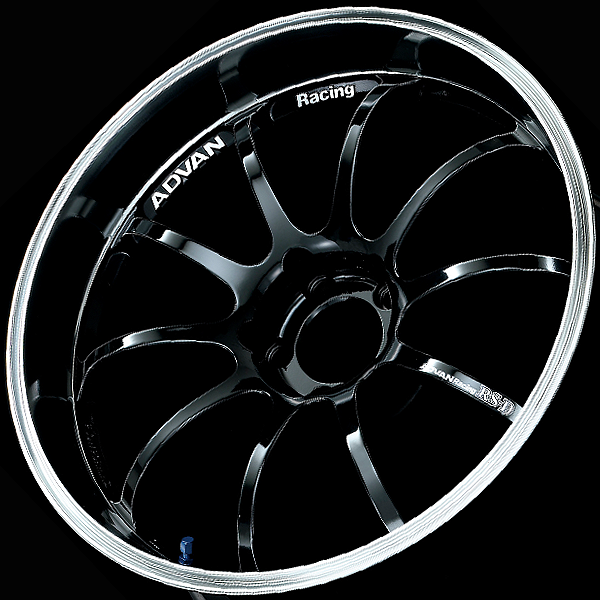

BB = Matt Black

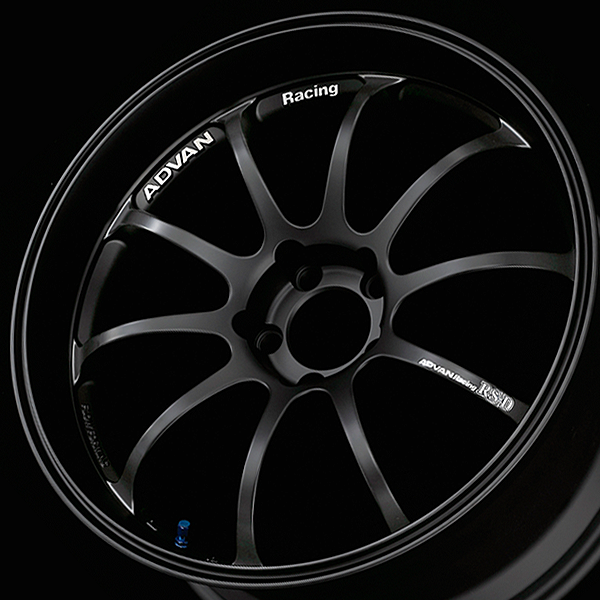

MB = Machining & Black

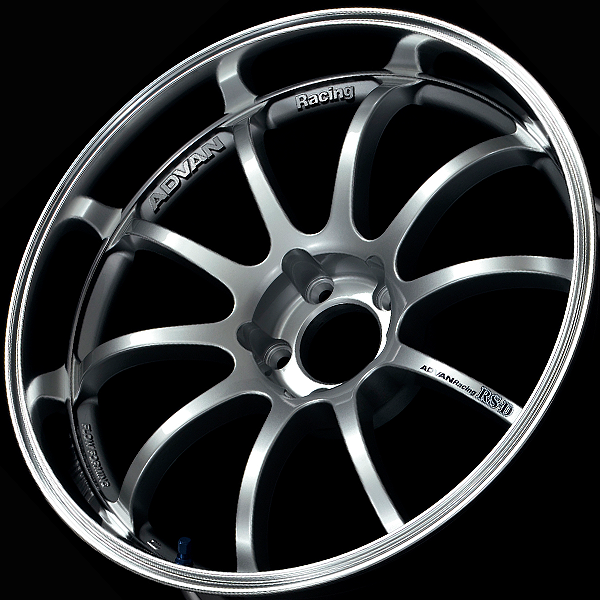

MS = Machining & Silver
