Advan Wheels

ADVAN RSDF

The first moulded and one-piece form-forged wheel to bear the ADVAN Racing RS name. Based on the traditional RS 10-spoke design, and creating a fusion of all RS elements such as the side cut on the RSⅡ and the deep rim on the RS-D, and produced with a forging process, the strongest RS wheel of all was born—the RS-DF. (DF stands for Deep Forged.)

The rims available in three depths—standard, medium, and extra, to allow for the caliper clearance of the car the rims are mounted on.

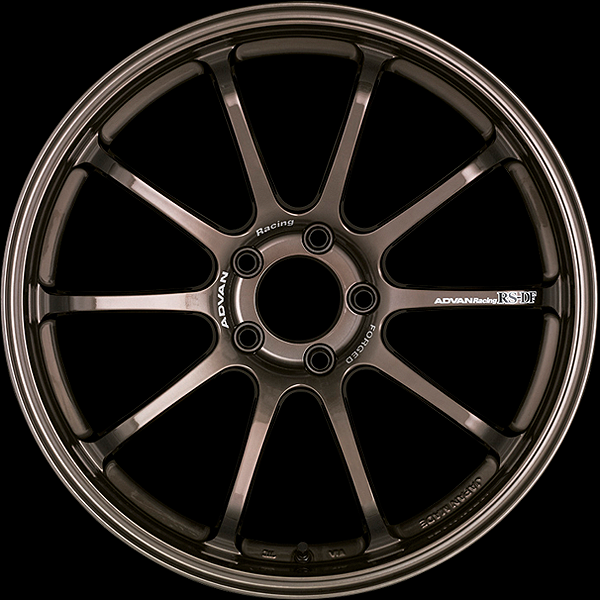

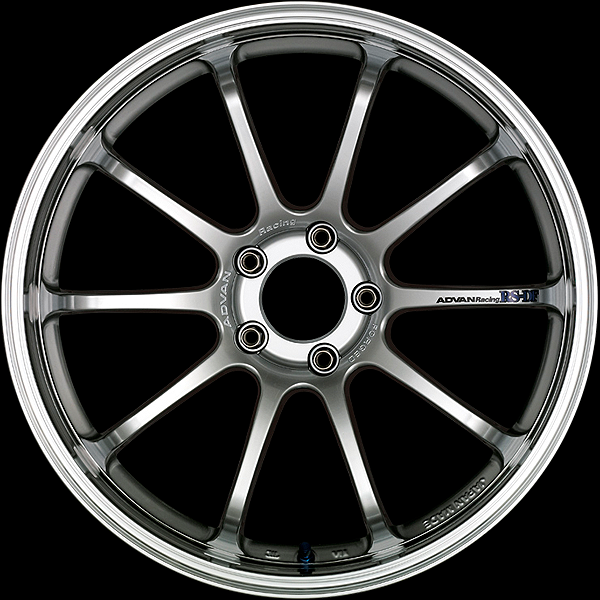

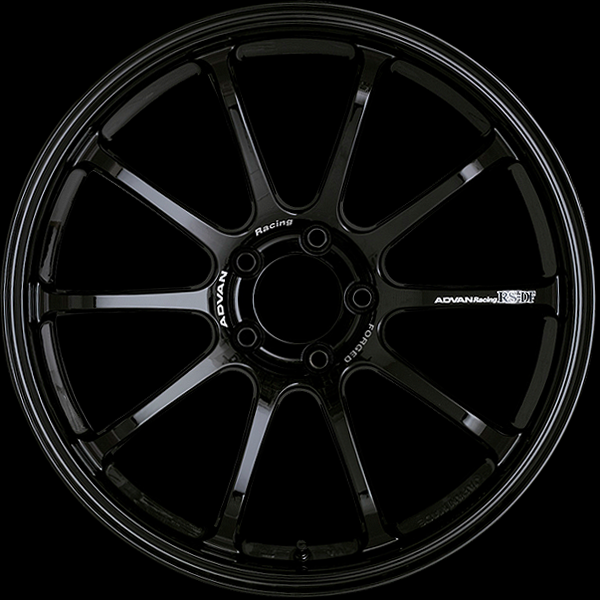

Three colour variations are available—Machining & Racing Hyper Silver* with Diamond Cut Finish machining on deep rims, Racing Gloss Black with full gloss black all over, and Racing Hyper Bronze* to appeal to those with a more aggressive attitude. (*Some colours may not be available in every wheel size. All wheels come with ADVAN Racing RS-DF spoke logo stickers (dark blue for the Machining & Racing Hyper Silver and Racing Hyper Bronze, and white for the Semi Gloss Black).

The three-dimensional ADVAN Racing FORGED logo is machined into the wheel centre.

In the centre of the wheel, the spokes bend at a sharp angle to ensure ample caliper clearance. At the same time, this creates a design that emphasizes a feeling of depth and a tough, machine-cut image. RS-DF 18-inch advance to progressive models. Their only rivals are GT 18-inch wheels.

RS-DF Progressive adopted the same rim form as the GT-18-inch, a racing rim profile that can accept braking systems with up to 400mm rotors. The front rim is 34mm deep, five choices of concave spokes, ranging from Concave-1 to Concave-5, is the same as GT 18-inch models.

The spokes are side cut on both sides, without joins, using the “advanced side cut” process. 18inch RS-DF Progressive still have logos of ADVAN Racing, FORGED machined on the their center part, the same as 19inch models.

The anti-tire-slip feature makes sure the tires stay put no matter what, and it’s standard on all sizes.

The 10-spoke design of RS-DF wheels show superior stress dispersal, giving them an advantage in weight compared to GT 18inch.

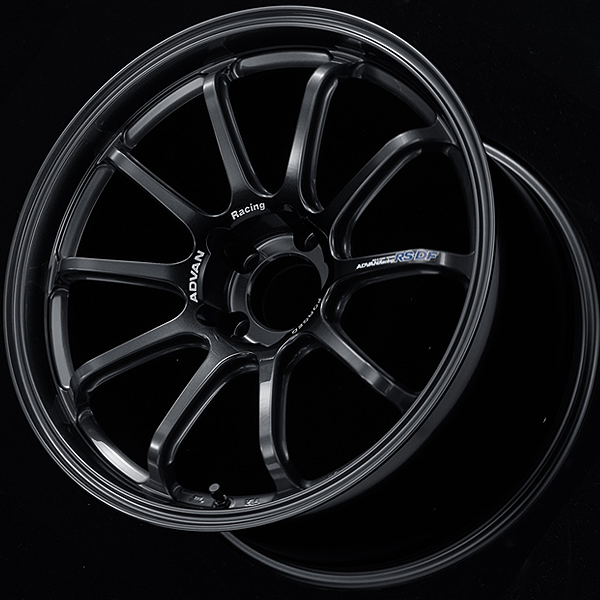

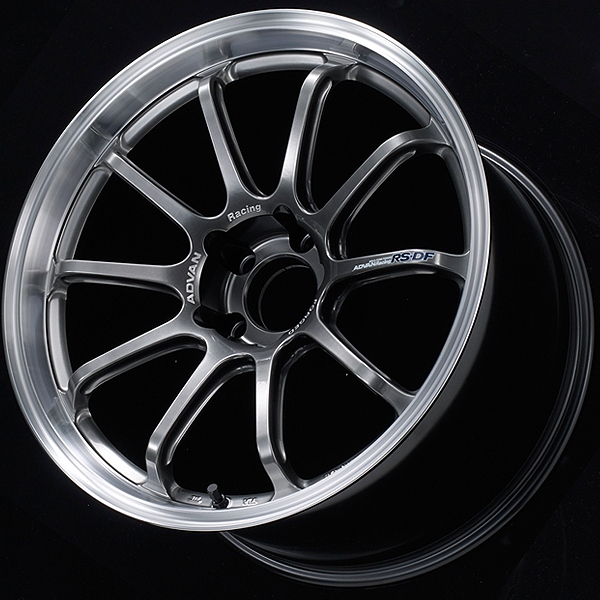

RS-DF Progressive are available in the following colors: Machining & Racing Hyper Black, Racing Titanium Black and Dark Bronze Metallic, the last 2 colors were newly developed.

The RS-DF Progressive in five concave configurations. YOKOHAMA designed this size with the maximum possible concave, taking rim width and inset into account, along with the caliper clearance necessary for the cars that can use this size.


Enquire now
Wheel Image
Wheel Image
Wheel Image
Wheel Image
Wheel Image
Wheel Image

Fitments Enquire now

RIM SIZE PCD HOLE OFFSET COLOUR RRP
18x10J 114.3 5 40 MHB $1120
18x10J 114.3 5 40 TBK $1066
18x10J 114.3 5 40 DBM $1066
18x10J 114.3 5 35 MHB $1120
18x10J 114.3 5 35 TBK $1066
18x10J 114.3 5 35 DBM $1066
18x10J 114.3 5 22 MHB $1120
18x10J 114.3 5 22 TBK $1066
18x10J 114.3 5 22 DBM $1066
18x10.5J 114.3 5 35 MHB $1140
18x10.5J 114.3 5 35 TBK $1086
18x10.5J 114.3 5 35 DBM $1086
18x10.5J 114.3 5 24 MHB $1140
18x10.5J 114.3 5 24 TBK $1086
18x10.5J 114.3 5 24 DBM $1086
18x10.5J 114.3 5 15 MHB $1140
18x10.5J 114.3 5 15 TBK $1086
18x10.5J 114.3 5 15 DBM $1086
18x10.5J 120 5 35 MHB $1140
18x10.5J 120 5 35 TBK $1086
18x10.5J 120 5 24 MHB $1140
18x10.5J 120 5 24 TBK $1086
18x11J 114.3 5 30 MHB $1160
18x11J 114.3 5 30 TBK $1108
18x11J 114.3 5 30 DBM $1108
18x11J 114.3 5 15 MHB $1160
18x11J 114.3 5 15 TBK $1108
18x11J 114.3 5 15 DBM $1108
18x12J 114.3 5 25 MHB $1200
18x12J 114.3 5 25 TBK $1146
18x12J 114.3 5 25 DBM $1146
18x8J 100 5 44 MHB $1040
18x8J 100 5 44 TBK $986
18x8J 100 5 44 DBM $986
18x8J 112 5 48 MHB $1040
18x8J 112 5 48 TBK $986
18x8J 114.3 5 44 MHB $1040
18x8J 114.3 5 44 TBK $986
18x8J 114.3 5 44 DBM $986
18x8J 120 5 45 MHB $1040
18x8J 120 5 45 TBK $986
18x8.5J 100 5 45 MHB $1060
18x8.5J 100 5 45 TBK $1006
18x8.5J 100 5 45 DBM $1006
18x8.5J 114.3 5 50 MHB $1060
18x8.5J 114.3 5 50 TBK $1006
18x8.5J 114.3 5 50 DBM $1006
18x8.5J 114.3 5 45 MHB $1060
18x8.5J 114.3 5 45 TBK $1006
18x8.5J 114.3 5 45 DBM $1006
18x8.5J 114.3 5 37 MHB $1060
18x8.5J 114.3 5 37 TBK $1006
18x8.5J 114.3 5 37 DBM $1006
18x8.5J 120 5 35 MHB $1060
18x8.5J 120 5 35 TBK $1006
18x9J 100 5 52 MHB $1080
18x9J 100 5 52 TBK $1026
18x9J 100 5 52 DBM $1026
18x9J 112 5 50 MHB $1080
18x9J 112 5 50 TBK $1026
18x9J 114.3 5 43 MHB $1080
18x9J 114.3 5 43 TBK $1026
18x9J 114.3 5 43 DBM $1026
18x9J 114.3 5 31 MHB $1080
18x9J 114.3 5 31 TBK $1026
18x9J 114.3 5 31 DBM $1026
18x9J 114.3 5 25 MHB $1080
18x9J 114.3 5 25 TBK $1026
18x9J 114.3 5 25 DBM $1026
18x9J 120 5 53 MHB $1080
18x9J 120 5 53 TBK $1026
18x9.5J 100 5 45 MHB $1100
18x9.5J 100 5 45 TBK $1046
18x9.5J 100 5 45 DBM $1046
18x9.5J 100 5 40 MHB $1100
18x9.5J 100 5 40 TBK $1046
18x9.5J 100 5 40 DBM $1046
18x9.5J 114.3 5 45 MHB $1100
18x9.5J 114.3 5 45 TBK $1046
18x9.5J 114.3 5 45 DBM $1046
18x9.5J 114.3 5 29 MHB $1100
18x9.5J 114.3 5 29 TBK $1046
18x9.5J 114.3 5 29 DBM $1046
18x9.5J 114.3 5 22 MHB $1100
18x9.5J 114.3 5 22 TBK $1046
18x9.5J 114.3 5 22 DBM $1046
18x9.5J 114.3 5 12 MHB $1100
18x9.5J 114.3 5 12 TBK $1046
18x9.5J 114.3 5 12 DBM $1046
18x9.5J 120 5 50 MHB $1100
18x9.5J 120 5 50 TBK $1046
18x9.5J 120 5 35 MHB $1100
18x9.5J 120 5 35 TBK $1046
18x9.5J 120 5 22 MHB $1100
18x9.5J 120 5 22 TBK $1046
19x8J 100 5 47 RGB $1120
19x8J 100 5 47 MHS $1186
19x8J 100 5 47 HBZ $1146
19x8J 112 5 48 RGB $1120
19x8J 112 5 48 MHS $1186
19x8.5J 100 5 47 RGB $1140
19x8.5J 100 5 47 MHS $1206
19x8.5J 100 5 47 HBZ $1166
19x8.5J 100 5 38 RGB $1140
19x8.5J 100 5 38 MHS $1206
19x8.5J 100 5 38 HBZ $1166
19x8.5J 112 5 45 RGB $1140
19x8.5J 112 5 45 MHS $1206
19x8.5J 114.3 5 47 RGB $1140
19x8.5J 114.3 5 47 MHS $1206
19x8.5J 114.3 5 47 HBZ $1166
19x8.5J 114.3 5 38 RGB $1140
19x8.5J 114.3 5 38 MHS $1206
19x8.5J 114.3 5 38 HBZ $1166
19x8.5J 120 5 35 RGB $1140
19x8.5J 120 5 35 MHS $1206
19x9J 100 5 50 RGB $1160
19x9J 100 5 50 MHS $1226
19x9J 100 5 50 HBZ $1186
19x9J 112 5 51 RGB $1160
19x9J 112 5 51 MHS $1226
19x9J 114.3 5 45 RGB $1160
19x9J 114.3 5 45 MHS $1226
19x9J 114.3 5 45 HBZ $1186
19x9J 114.3 5 35 RGB $1160
19x9J 114.3 5 35 MHS $1226
19x9J 114.3 5 35 HBZ $1186
19x9J 114.3 5 25 RGB $1160
19x9J 114.3 5 25 MHS $1226
19x9J 114.3 5 25 HBZ $1186
19x9J 120 5 20 RGB $1160
19x9J 120 5 20 MHS $1226
19x9.5J 112 5 29 RGB $1180
19x9.5J 112 5 29 MHS $1246
19x9.5J 114.3 5 50 RGB $1180
19x9.5J 114.3 5 50 MHS $1246
19x9.5J 114.3 5 50 HBZ $1206
19x9.5J 114.3 5 29 RGB $1180
19x9.5J 114.3 5 29 MHS $1246
19x9.5J 114.3 5 29 HBZ $1206
19x9.5J 120 5 50 RGB $1180
19x9.5J 120 5 50 MHS $1246
19x9.5J 120 5 35 RGB $1180
19x9.5J 120 5 35 MHS $1246
19x10J 114.3 5 35 RGB $1200
19x10J 114.3 5 35 MHS $1266
19x10J 114.3 5 35 HBZ $1226
19x10J 114.3 5 25 RGB $1200
19x10J 114.3 5 25 MHS $1266
19x10J 114.3 5 25 HBZ $1226
19x10J 120 5 22 RGB $1200
19x10J 120 5 22 MHS $1266
19x10.5J 114.3 5 15 RGB $1220
19x10.5J 114.3 5 15 MHS $1286
19x10.5J 114.3 5 15 HBZ $1246
19x10J 114.3 5 35 MHB $1266
19x10J 114.3 5 35 TBK $1200
19x10J 114.3 5 35 DBM $1200
19x10J 114.3 5 22 MHB $1266
19x10J 114.3 5 22 TBK $1200
19x10J 114.3 5 22 DBM $1200
19x10J 120 5 35 MHB $1266
19x10J 120 5 35 TBK $1200
19x10.5J 114.3 5 30 MHB $1286
19x10.5J 114.3 5 30 TBK $1220
19x10.5J 114.3 5 30 DBM $1220
19x10.5J 114.3 5 24 MHB $1286
19x10.5J 114.3 5 24 TBK $1220
19x10.5J 114.3 5 24 DBM $1220
19x10.5J 114.3 5 15 MHB $1286
19x10.5J 114.3 5 15 TBK $1220
19x10.5J 114.3 5 15 DBM $1220
19x10.5J 120 5 35 MHB $1286
19x10.5J 120 5 35 TBK $1220
19x8J 100 5 44 MHB $1186
19x8J 100 5 44 TBK $1120
19x8J 100 5 44 DBM $1120
19x8J 112 5 48 MHB $1186
19x8J 112 5 48 TBK $1120
19x8J 114.3 5 44 MHB $1186
19x8J 114.3 5 44 TBK $1120
19x8J 114.3 5 44 DBM $1120
19x8J 120 5 45 MHB $1186
19x8J 120 5 45 TBK $1120
19x8.5J 100 5 45 MHB $1206
19x8.5J 100 5 45 TBK $1140
19x8.5J 100 5 45 DBM $1140
19x8.5J 112 5 45 MHB $1206
19x8.5J 112 5 45 TBK $1140
19x8.5J 114.3 5 50 MHB $1206
19x8.5J 114.3 5 50 TBK $1140
19x8.5J 114.3 5 50 DBM $1140
19x8.5J 114.3 5 45 MHB $1206
19x8.5J 114.3 5 45 TBK $1140
19x8.5J 114.3 5 45 DBM $1140
19x8.5J 114.3 5 37 MHB $1206
19x8.5J 114.3 5 37 TBK $1140
19x8.5J 114.3 5 37 DBM $1140
19x8.5J 120 5 35 MHB $1206
19x8.5J 120 5 35 TBK $1140
19x9J 114.3 5 43 MHB $1226
19x9J 114.3 5 43 TBK $1160
19x9J 114.3 5 43 DBM $1160
19x9J 114.3 5 35 MHB $1226
19x9J 114.3 5 35 TBK $1160
19x9J 114.3 5 35 DBM $1160
19x9J 114.3 5 25 MHB $1226
19x9J 114.3 5 25 TBK $1160
19x9J 114.3 5 25 DBM $1160
19x9J 120 5 53 MHB $1226
19x9J 120 5 53 TBK $1160
19x9J 120 5 25 MHB $1226
19x9J 120 5 25 TBK $1160
19x9.5J 100 5 45 MHB $1246
19x9.5J 100 5 45 TBK $1180
19x9.5J 100 5 45 DBM $1180
19x9.5J 112 5 51 MHB $1246
19x9.5J 112 5 51 TBK $1180
19x9.5J 112 5 29 MHB $1246
19x9.5J 112 5 29 TBK $1180
19x9.5J 114.3 5 45 MHB $1246
19x9.5J 114.3 5 45 TBK $1180
19x9.5J 114.3 5 45 DBM $1180
19x9.5J 114.3 5 38 MHB $1246
19x9.5J 114.3 5 38 TBK $1180
19x9.5J 114.3 5 38 DBM $1180
19x9.5J 114.3 5 29 MHB $1246
19x9.5J 114.3 5 29 TBK $1180
19x9.5J 114.3 5 29 DBM $1180
19x9.5J 120 5 50 MHB $1246
19x9.5J 120 5 50 TBK $1180
19x9.5J 120 5 35 MHB $1246
19x9.5J 120 5 35 TBK $1180
19x9.5J 120 5 23 MHB $1246
19x9.5J 120 5 23 TBK $1180

Available Colours

MHB = Machining & Racing Hyper Black
TBK = Racing Titanium Black
DBM = Racing Dark Bronze Metallic
MHS = Machining & Racing Hyper Silver
RGB = Racing Gloss Black
HBZ = Racing Hyper Bronze
